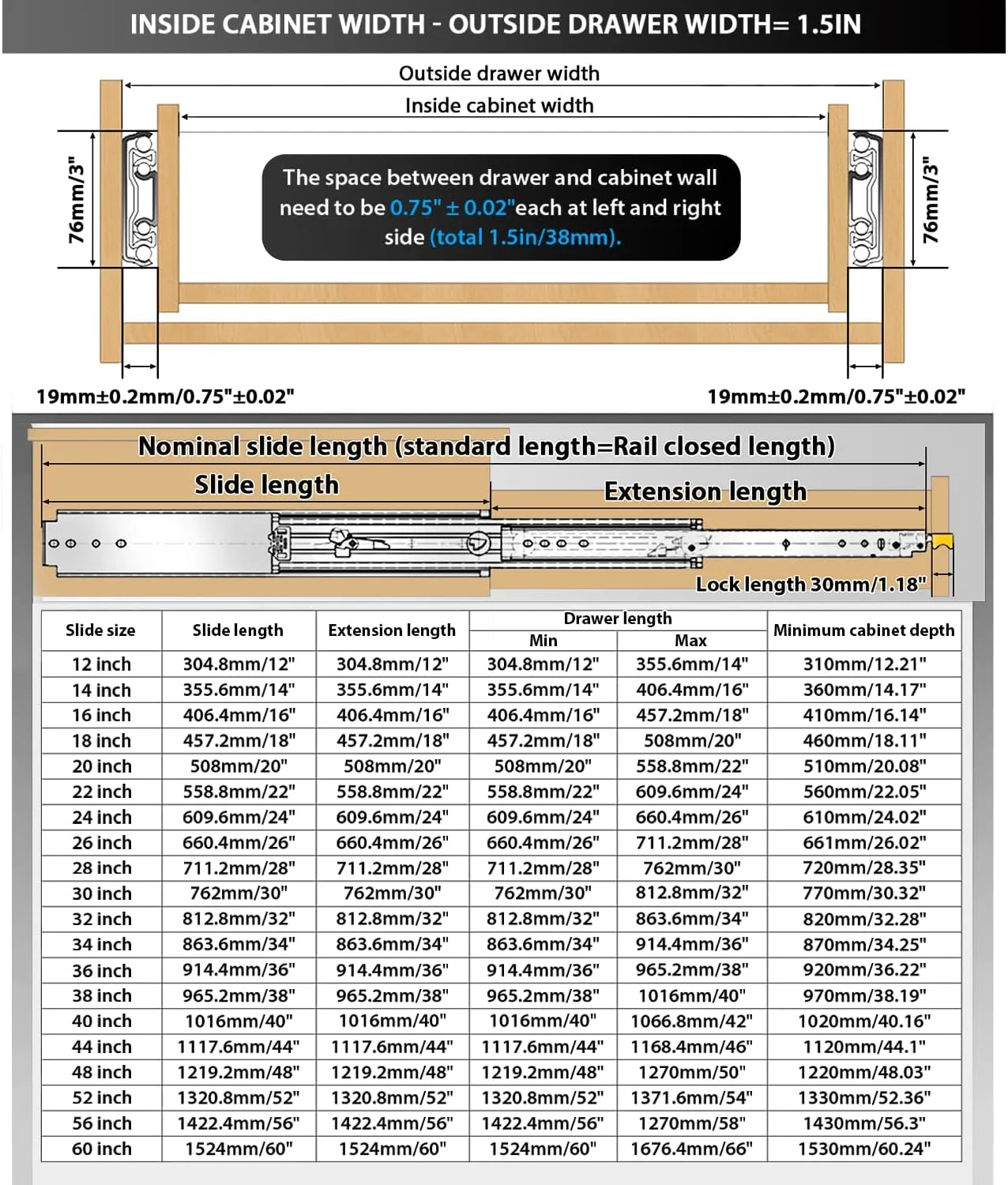

- 【Installation note】Suitable for 36-38 inch drawers.The space between drawer and cabinet wall need to be 0.75in each at left and right side,total 1.5in ( inside cabinet width - outside drawer width= 1.5in )一 Note:For installation,make sure the two slide rails parallel to each other,and make sure the drawer portion slides parallel to the cabinet portion slides and in the same level. without mounting screws included,you can purchase different M6 screws according to your specific installation scene.

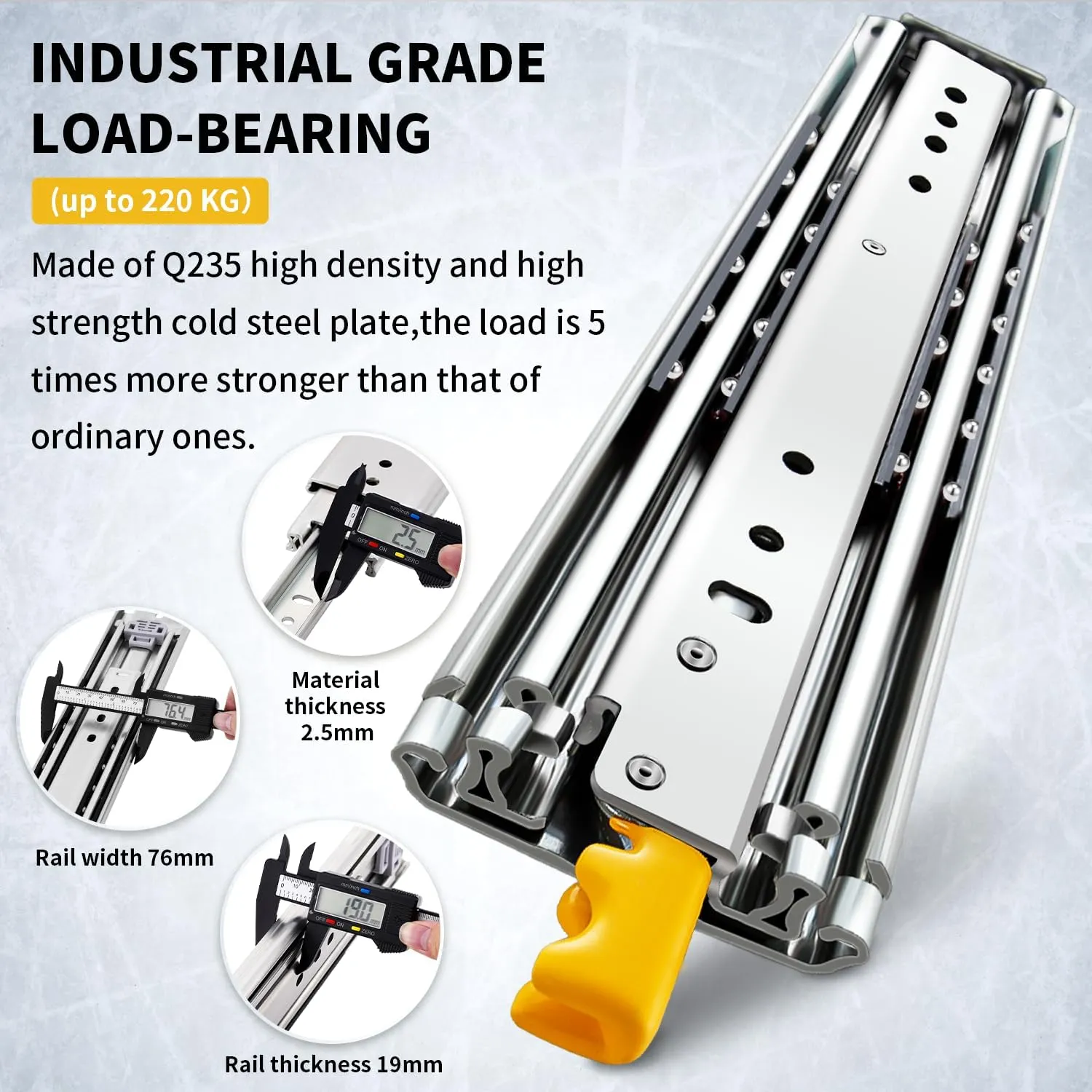

- 【MAXIMUM LOAD CAPACITY:390 lb】Made of Q235 steel plate, thickness 2.5mm, with high density and high strength, the carrying capacity is 5 times more stronger than that of ordinary ones. It will keep your drawers stable and safe even carrying up to 390 lb heavy weight items,which take opening and closing test 800,000 times under full loaded without damage.

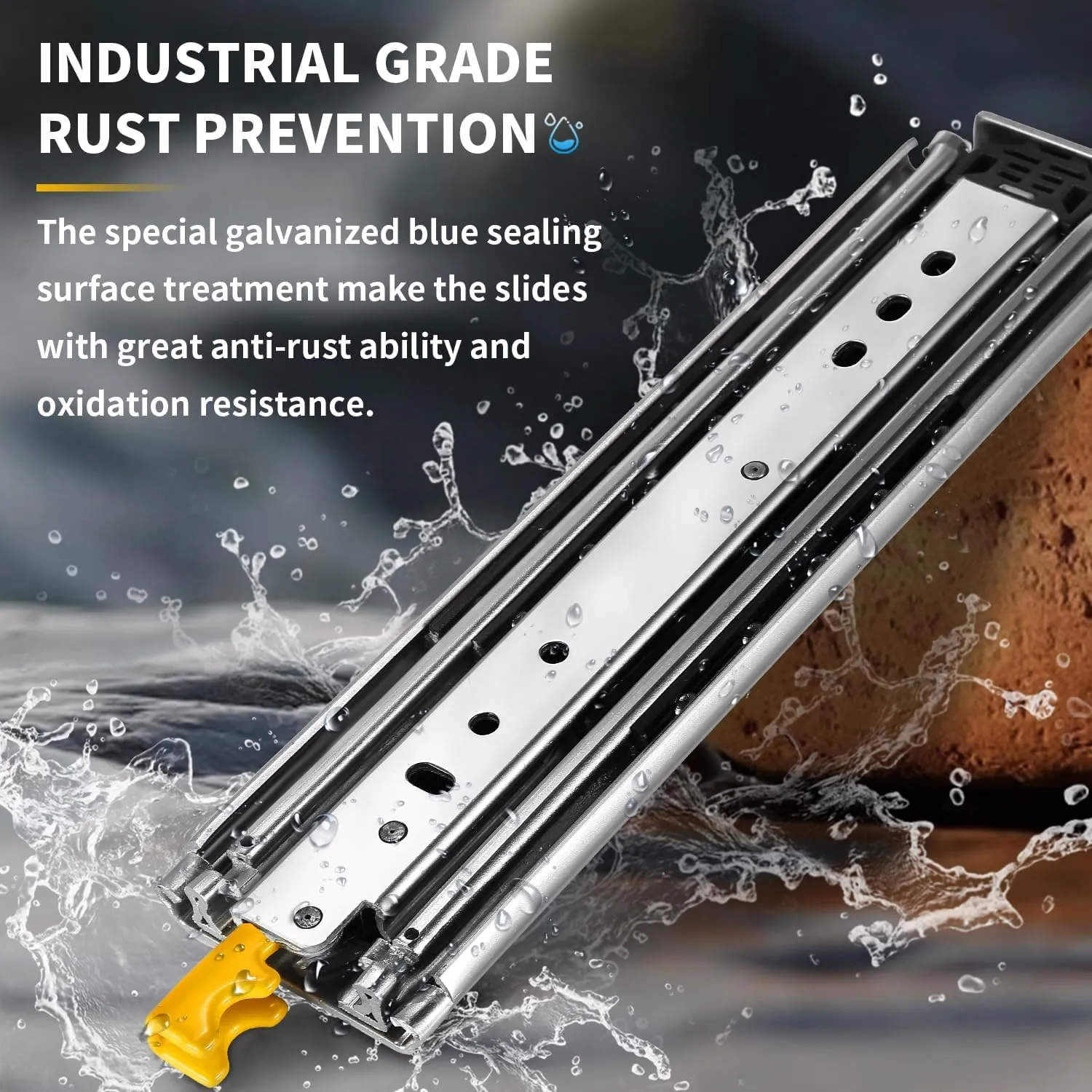

- 【30 years service life】The drawer slides' surface are treated with electroplated blue zinc, therefor it's with oxidation resistance and anti-corrosion ability, the service life of the slide rail could be 30 years at least. Our motto is "Use quality slides,live quality life",besides the quality, YENUO also focused on after-sales service,any quality or installing problem please feel free to contact us.

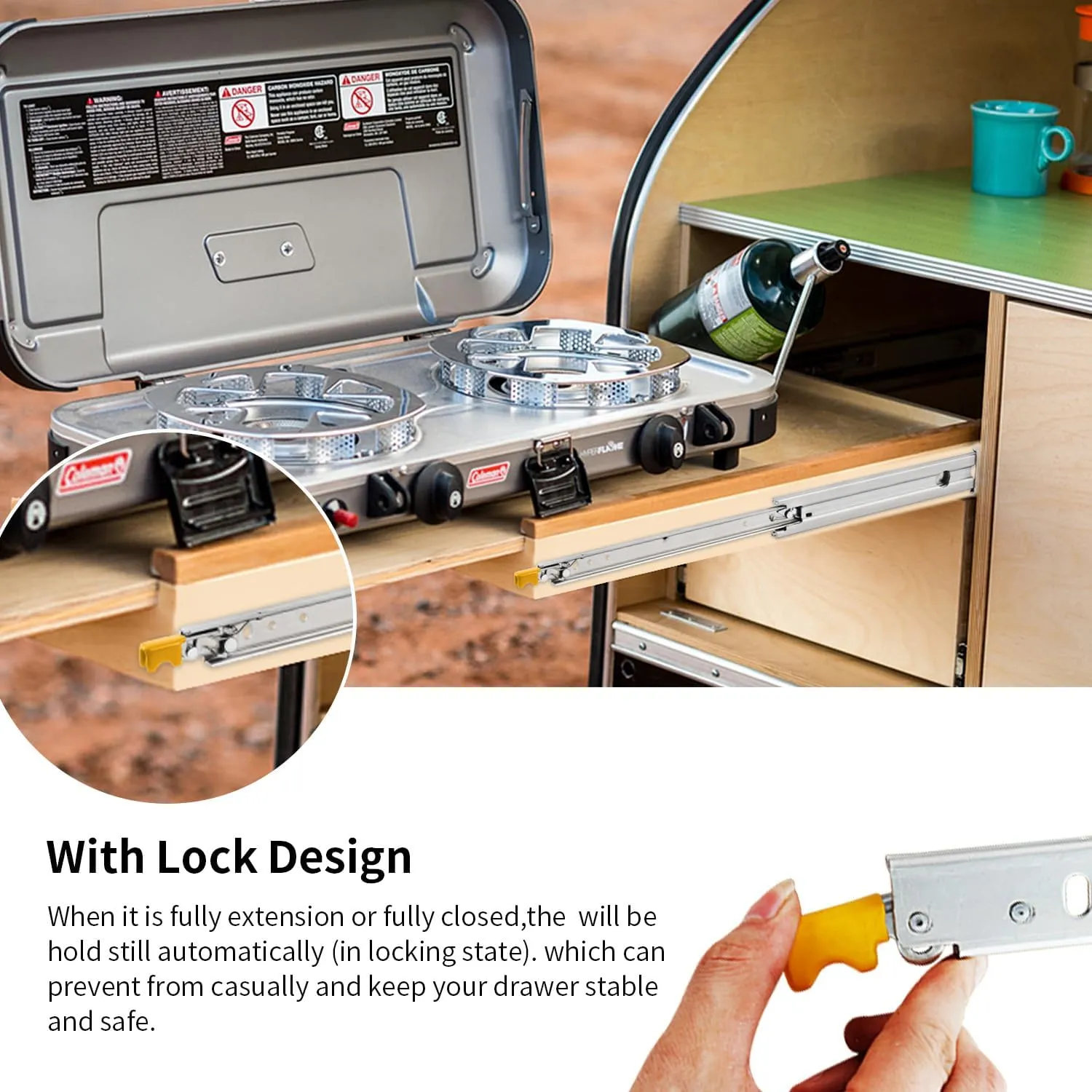

- 【With hold-still lock】There is a yellow handle to lock and unlock.When it is fully extension or fully closed,the slides will be hold still automatically (in locking state),which can prevent from sliding casually and keep your drawer stable and safe. Press the lock handle on both sides of the pair of slides at the same time gently,it's unlocked and get back in free sliding.( length of yellow lock : 1.18"/30mm)

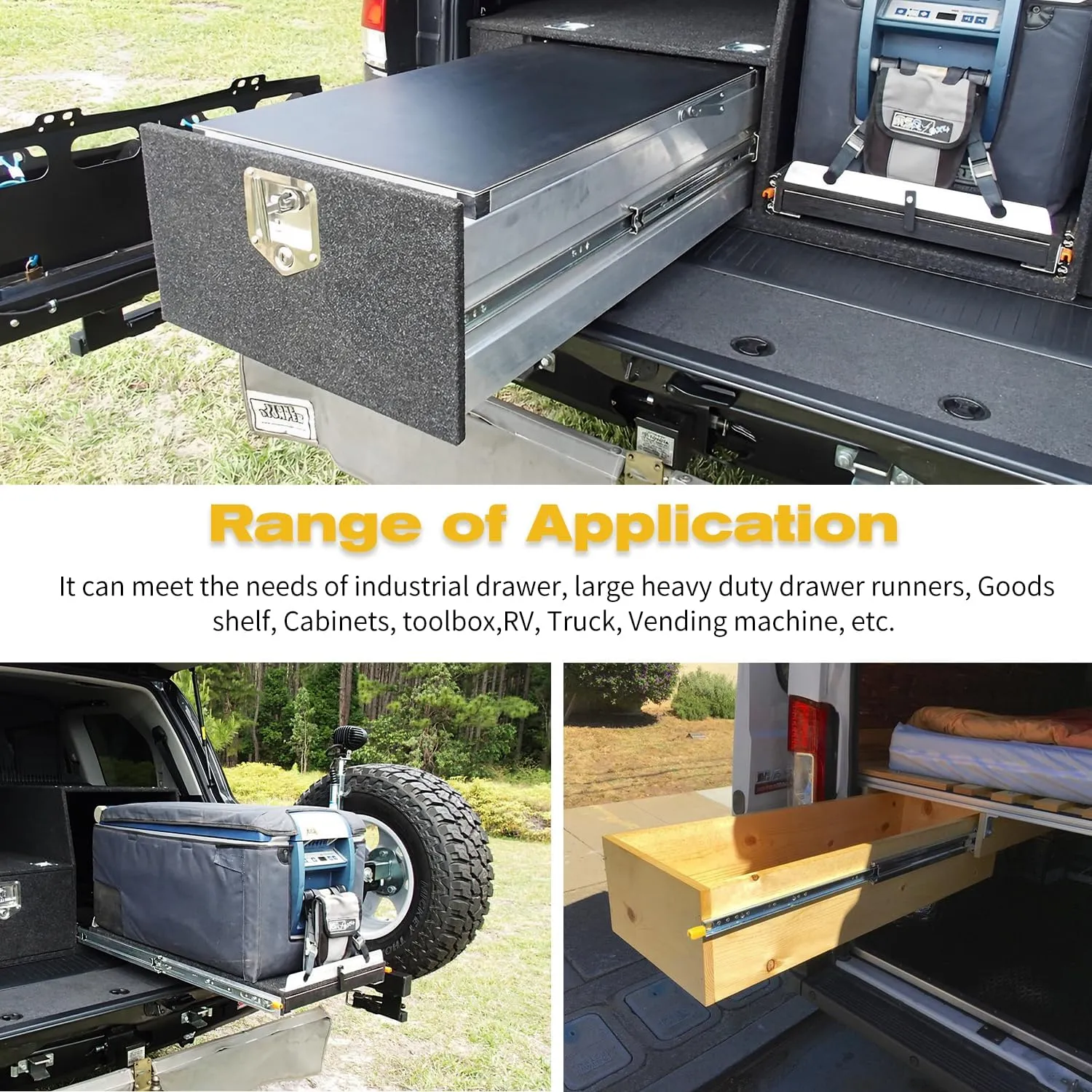

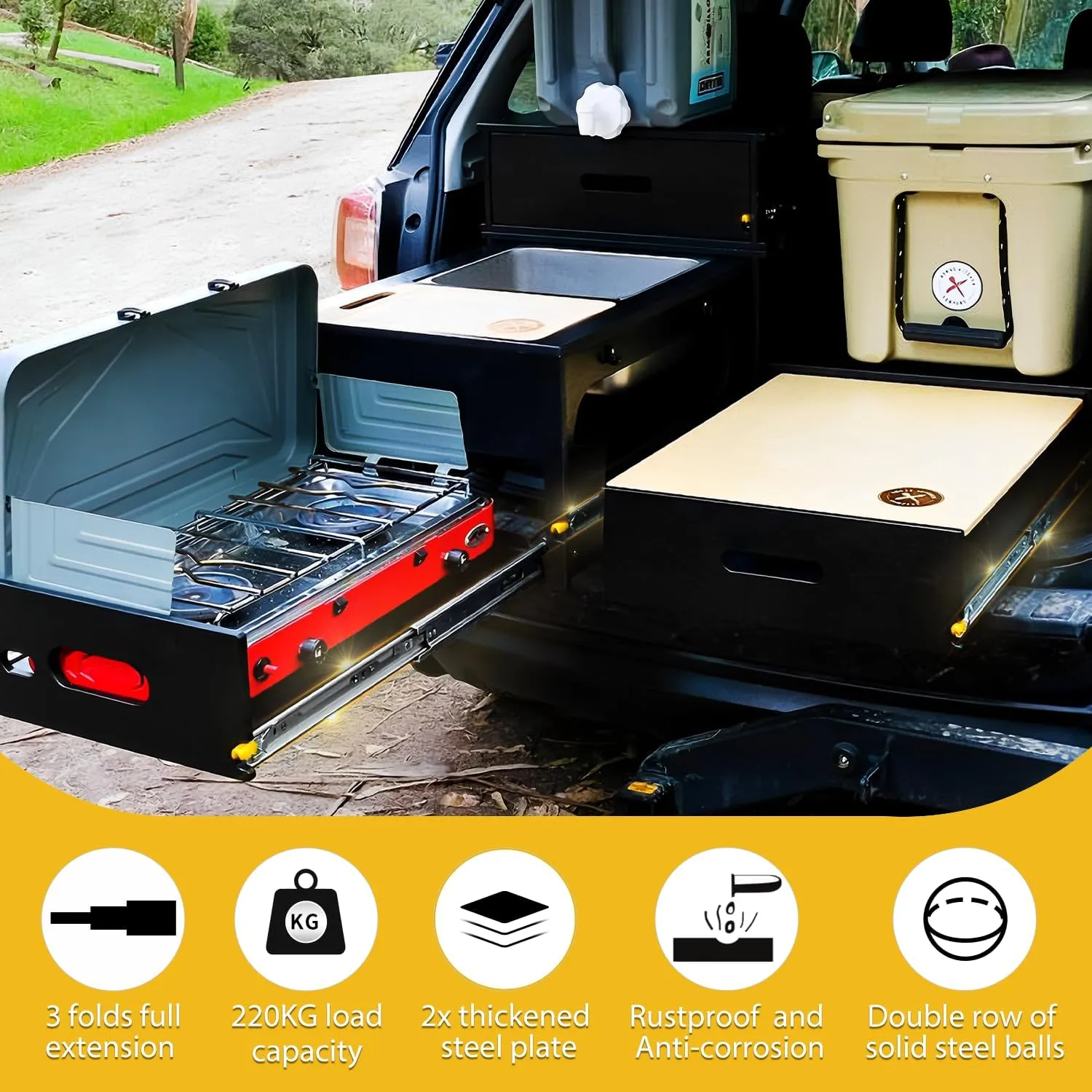

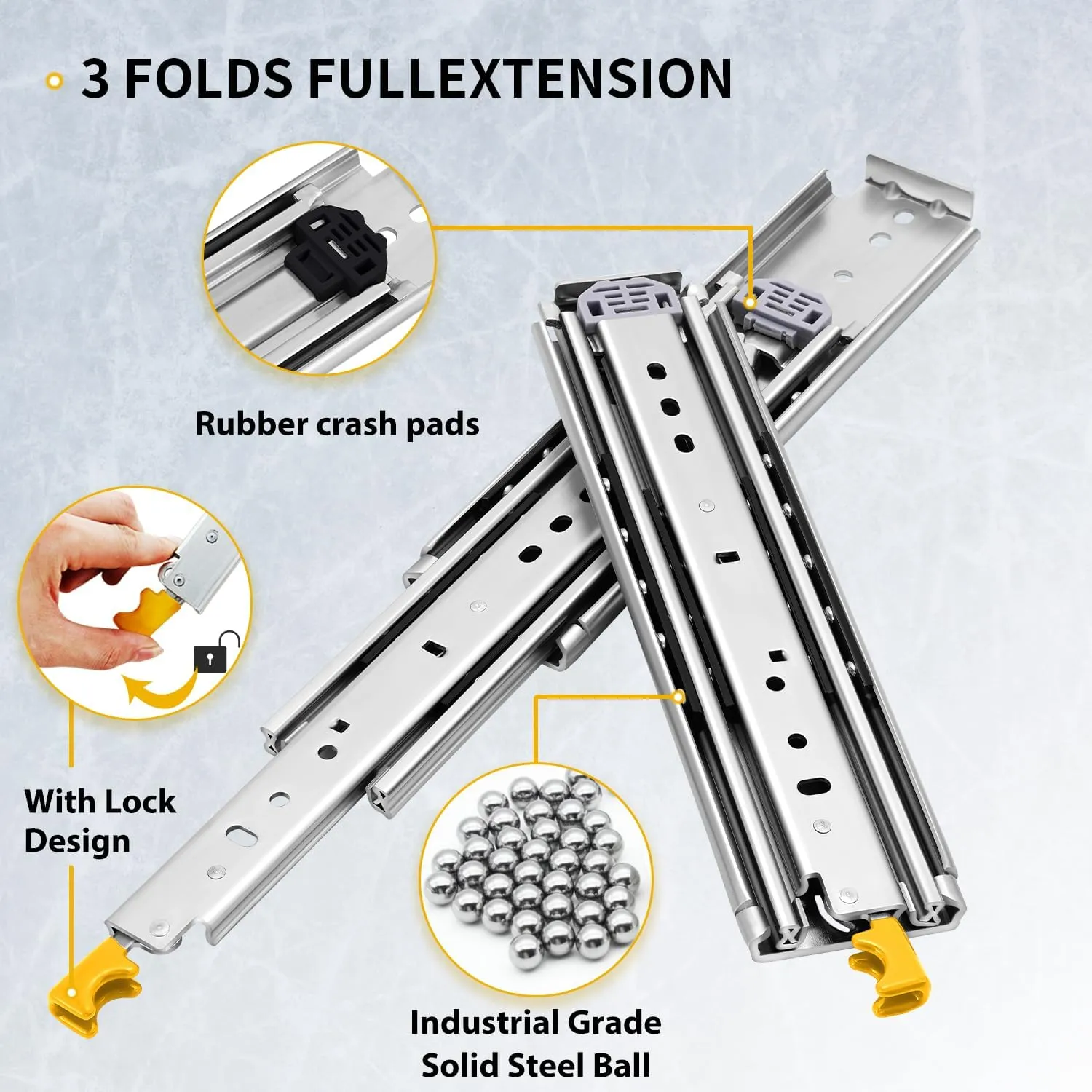

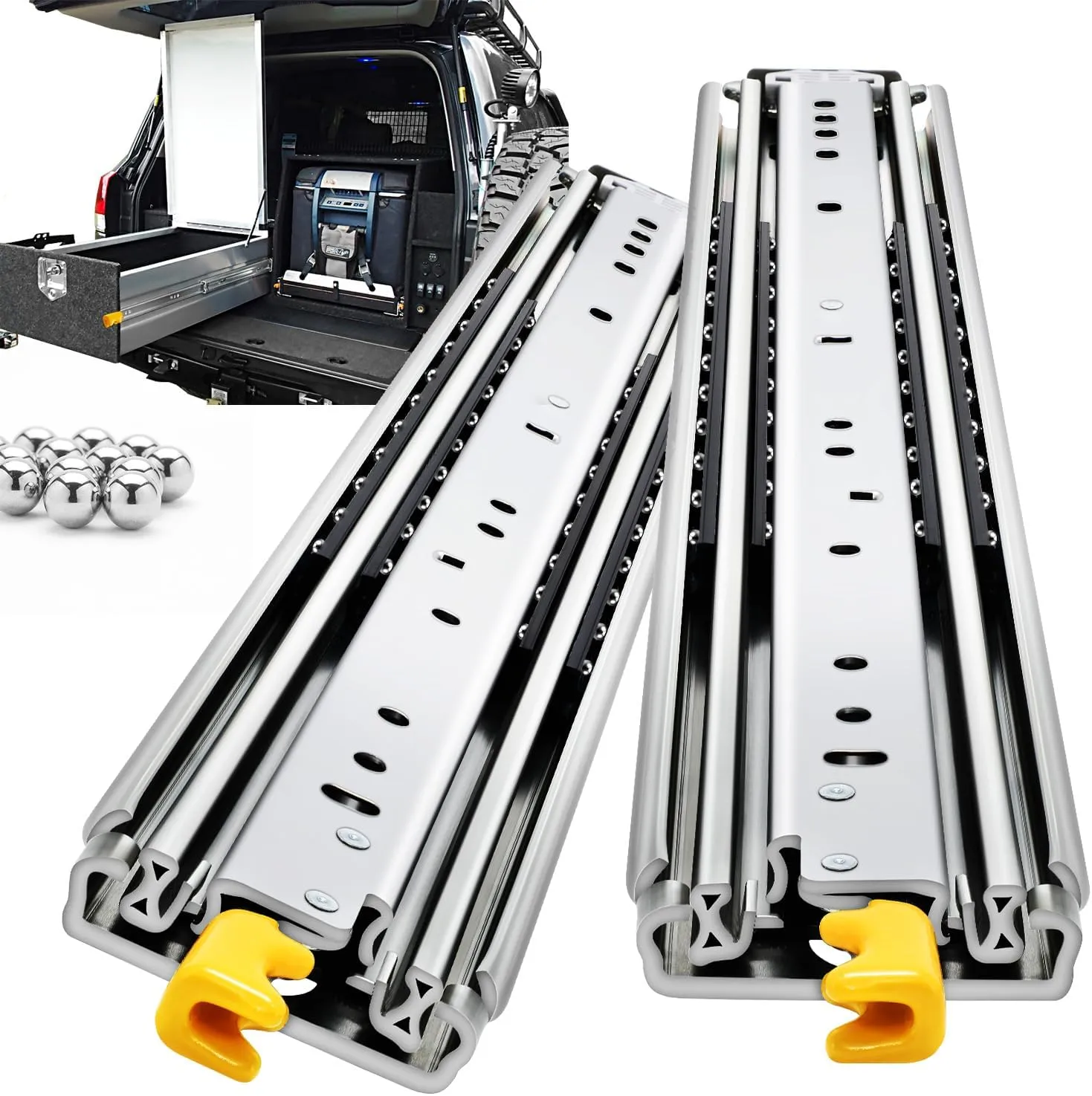

- 【3-fold full extension】Slides Width: 3" (76mm)--length: 36" (not including lock length)--Fully extended length:72"(1830mm)---Maximum load-bearing: 390 lb/176 kg.The "3-fold full extension"enable the slides to fully extend, so the drawer can be pulled out completely, which allows for the entire drawer's storage to be accessed easily; Application range: Goods shelf, Industrial drawers,Mechanical Cabinets, RV, Truck, Vending machine,safety drawers, exhibition drawers, heavy truck drawers,etc.
- 【Installation NOTE】:①One set includes a pair of slides without mounting screws included,you can purchase different M6 screws according to your specific installation scene. ②The 3rd section of the slides is unable to be disassembled for sake of safety,because this slides usually be used to carry up industrial grade heavy weight items. please refer to the video for the installation method.③The shorter the slide,the heavier the weight load.
